LimeSDR Mini Case and FM Filter

Date Published: 2018-05-30

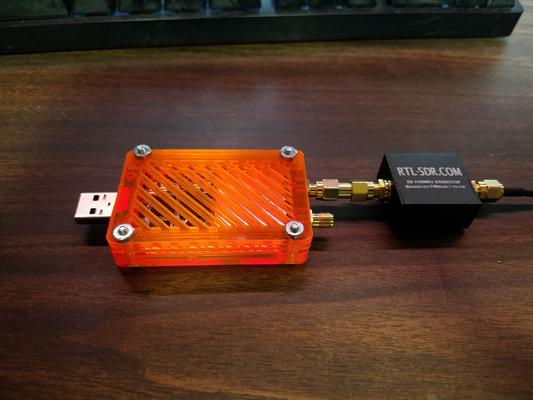

LimeSDR Mini Case and FM Filter cover image

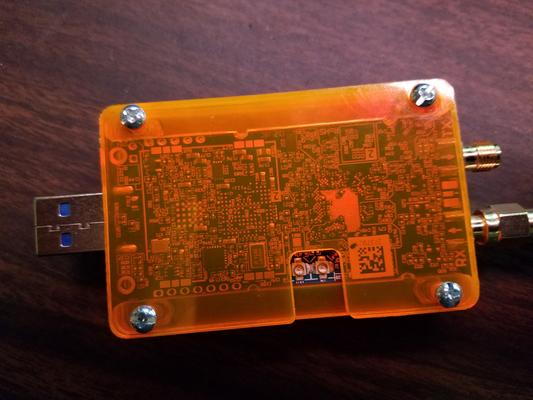

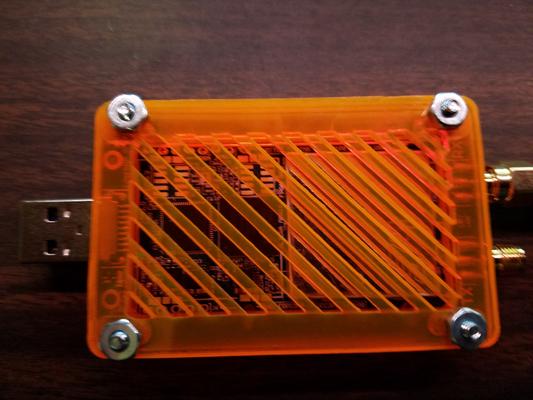

I made a laser-cut acrylic case for my LimeSDR Mini. CAD Files below. I also installed an FM filter. You can see the comparison before and after on the ameteur 20m band, and boy does it make a world of difference.

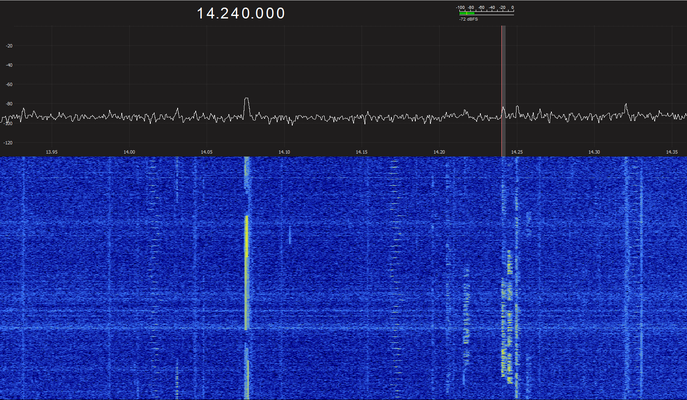

20m Waterfall with FM Filter

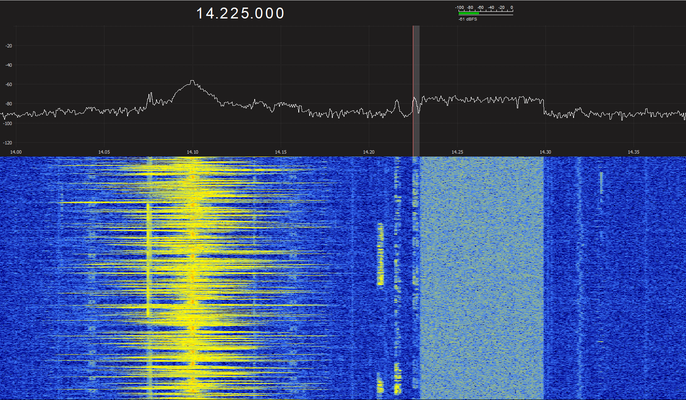

20m Waterfall without FM Filter

Download Files:

limesdr-mini-case.pdf
limesdr-mini-case.dwg
